AUTOMATIC LOADER IF20B

This automatic loader IF20B gives the operator the possibility of easily introducing the coffin into the cremation chamber while remaining at a safe distance from the loading hatch, and thus avoiding exposure to heat reverberation coming from the refractory structure.

The use of a fully automatic loading apparatus with transversal translation on tracks also allows to serve several cremation lines at the same time.

Features automatic loader IF20B

• Controls on the operator side to avoid exposure to heat
• Fully automatic operation
• Designed to preserve the cremation sole
• Maximum load capacity of 350 Kg.
• Possibility of installation on tracks allows you to serve various furnaces with a single coffin loader
• No rubbing when positioning the coffin for furnace introduction

Product details

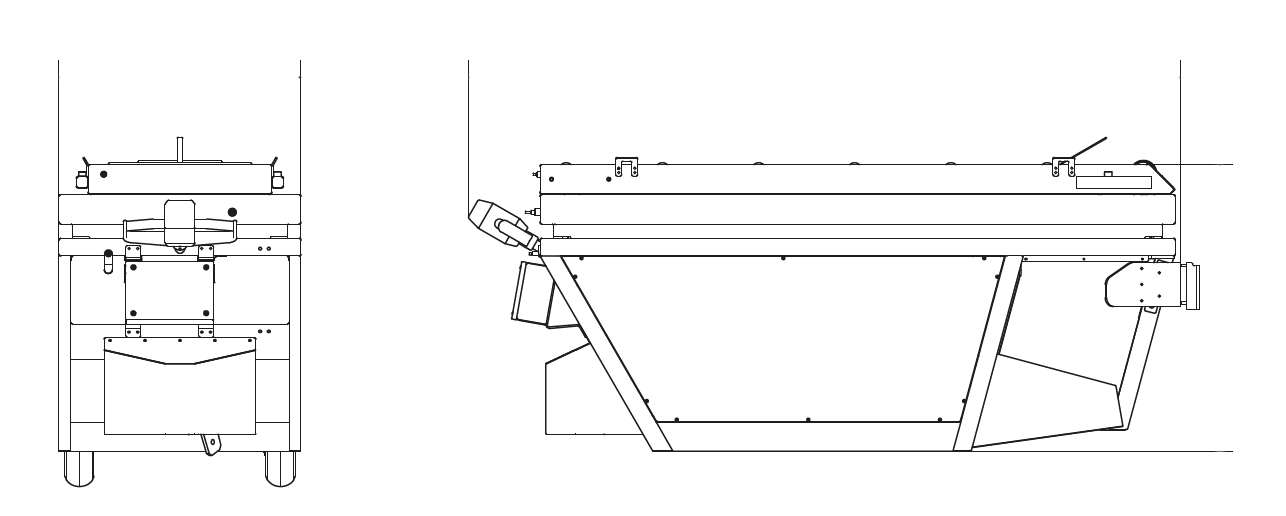

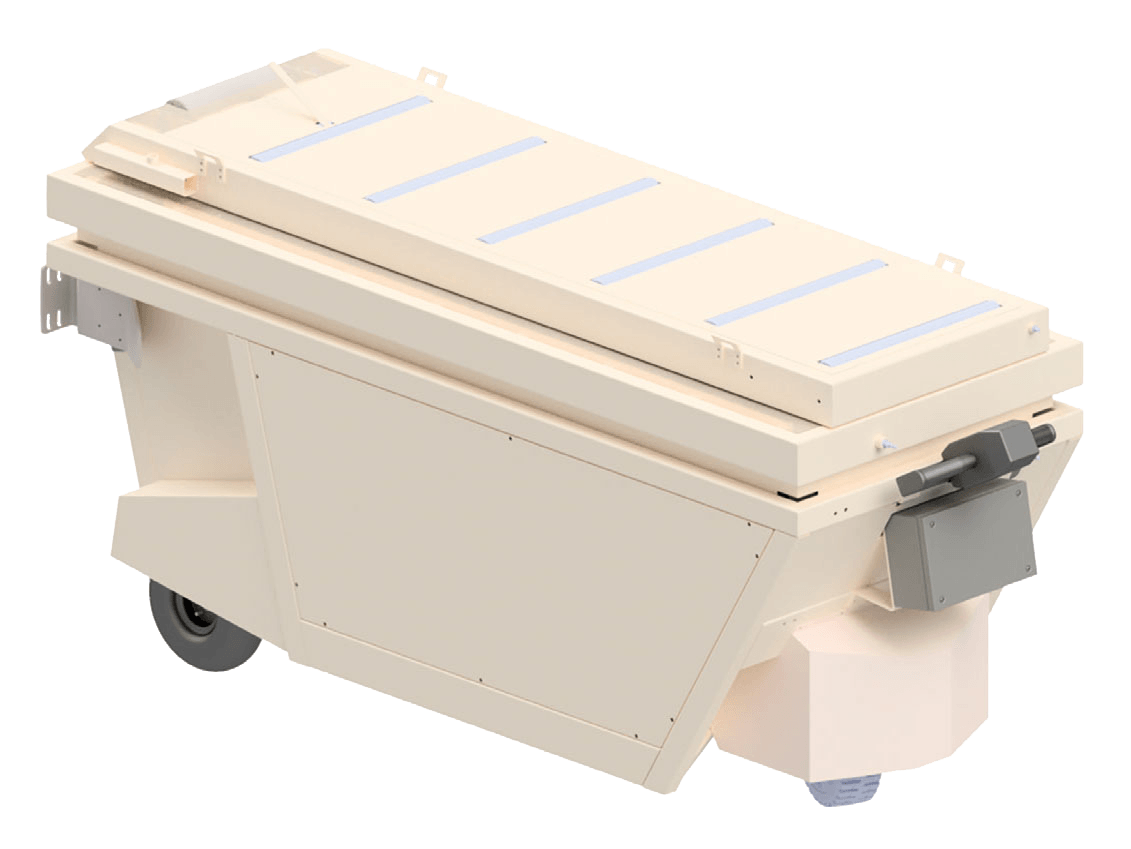

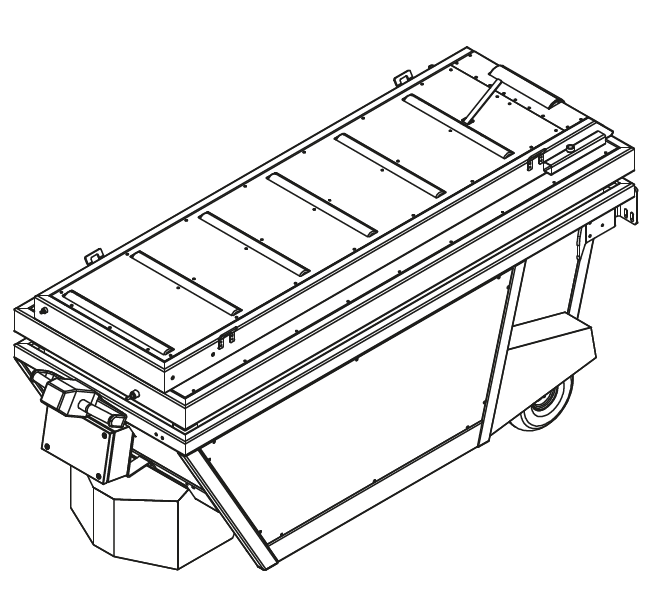

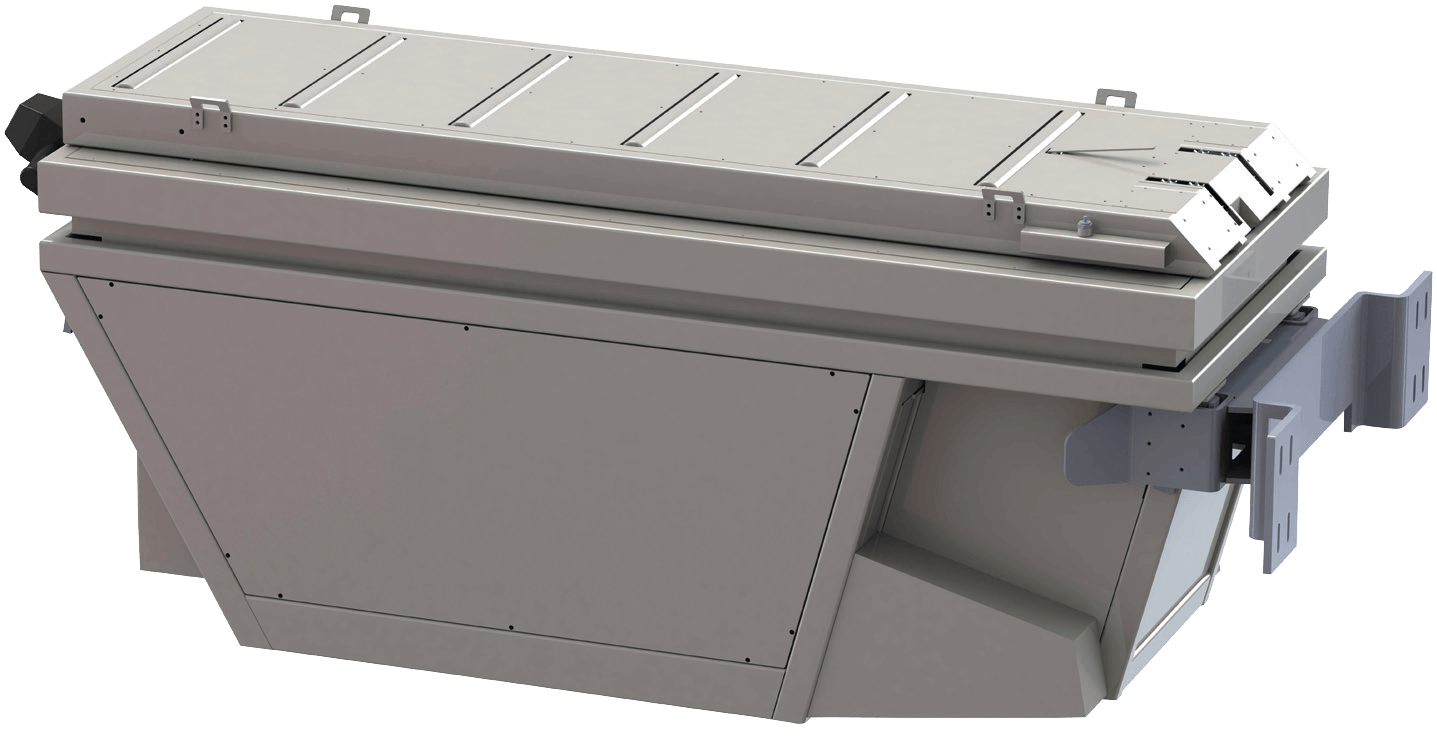

This device consists of a trolley with a motorized roller conveyor in the upper part, on which the coffin is placed.

The trolley partially enters the furnace, through a gear motor control, allowing the coffin to be introduced in the correct position, thus preserving the cremation sole.

The trolley has an internal structure in steel profiles with a maximum load capacity of 350 kg.

Operation is completely automatic: the positioning of the trolley for the introduction of the coffin is guaranteed by proximity sensors that signal the alignment to the furnace to allow the correct introduction of the coffin inside the primary chamber.

The automatic coffin loading trolley can be designed according to the customer’s needs with a movement on rubber or on rails allowing the same trolley to operate on different furnaces.

Product Specifications
