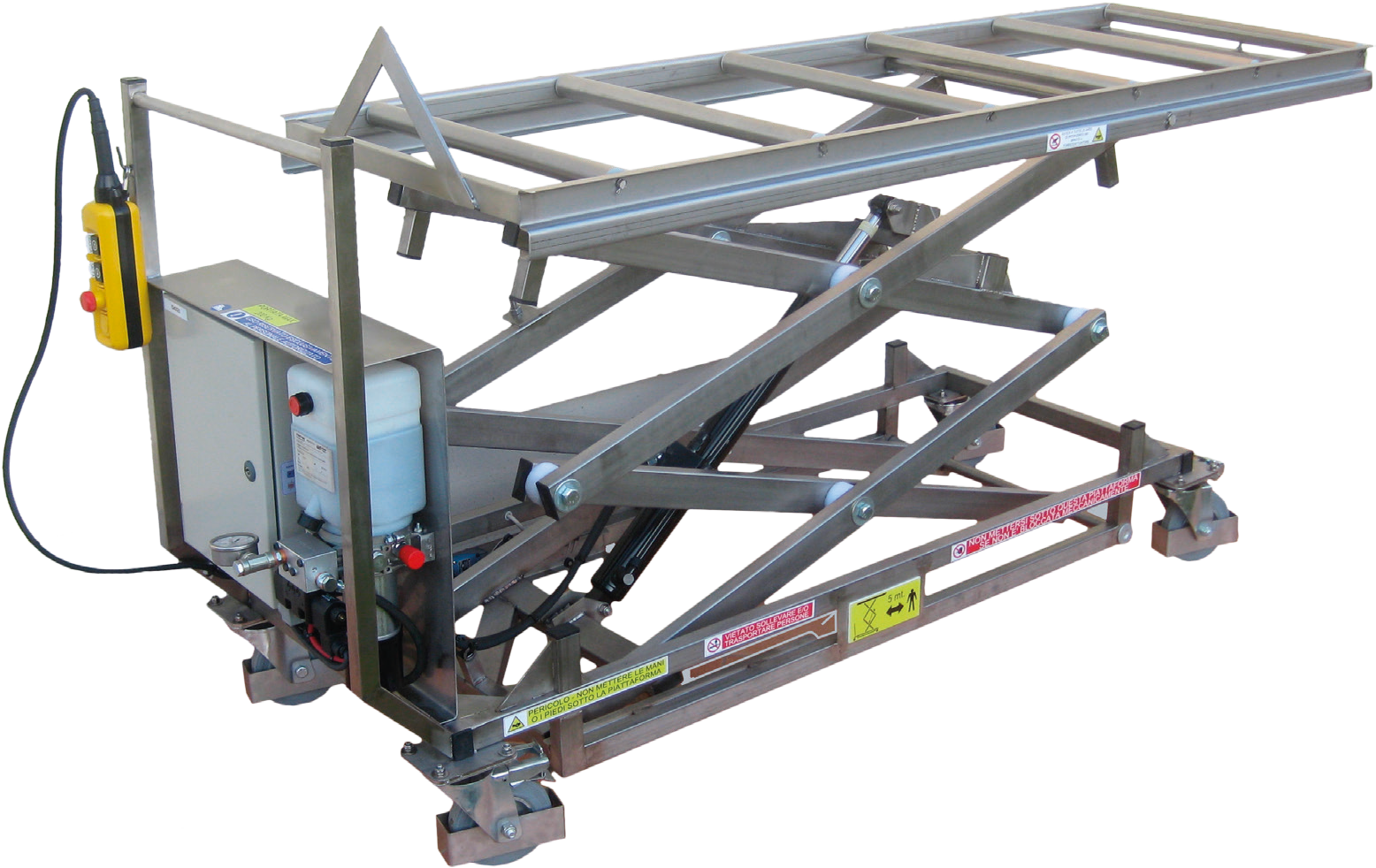

ELECTRIC FORKLIFT WITH STAINLESS STEEL ROLLERS

The electric forklift is used both for the transport of caskets, and in combination with cold rooms for insertion and extraction by a single operator.

Features upgraded electric forklift

• It is equipped with movable parallelogram arms that allow it to be raised to the desired height
• Platform with roller conveyor, to allow the movement of the coffin inside and outside the cold rooms
• Platform equipped with electronic weighing system (NOT STANDARD)

Product details

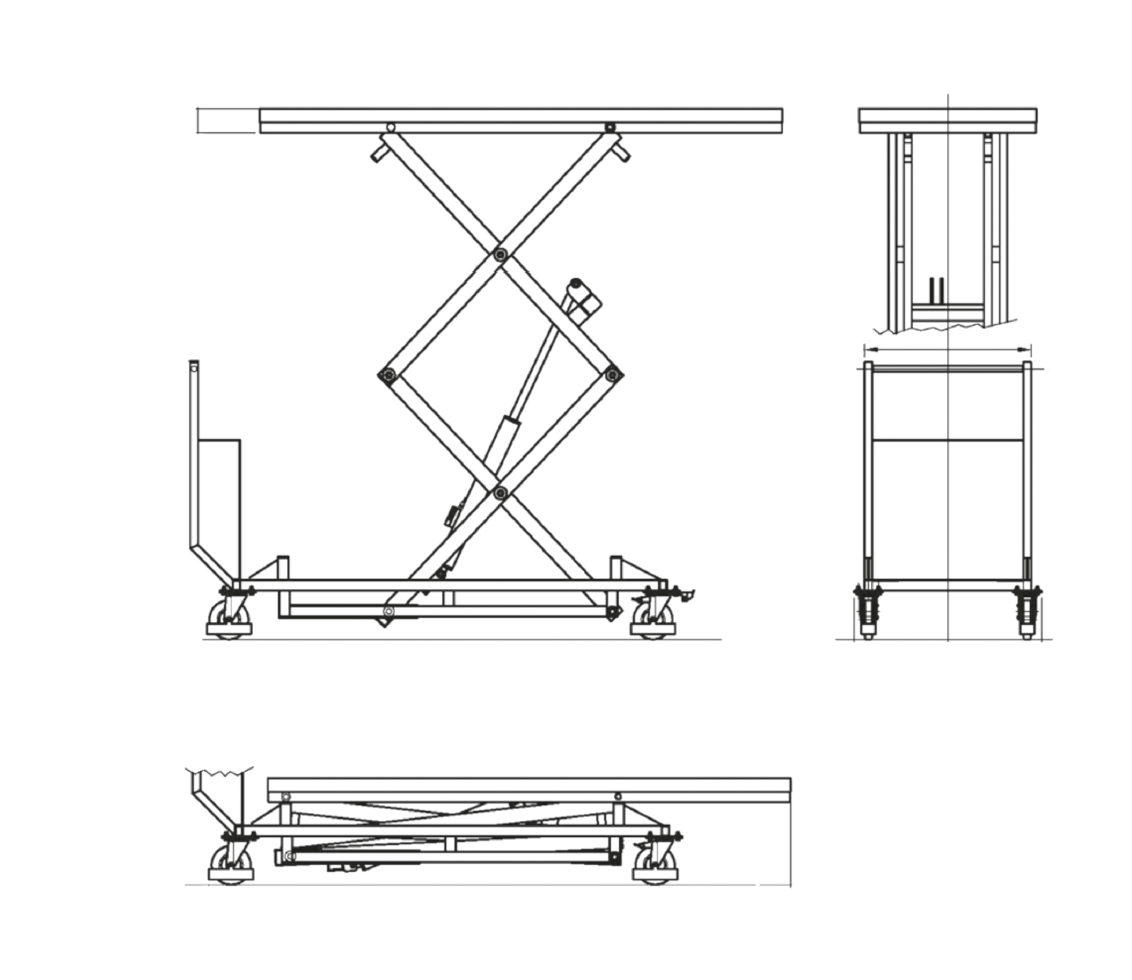

It is built with tubular and stainless-steel profiles and with an elevating double scissor frame, able to reach the 3rd compartment of the cold rooms.

The electric lifting mechanism is guaranteed thanks to an activation and adjustment button.

There is a flow regulator that, once lifted the load and you want to lower it, avoids it to go down too fast and endanger the worker.

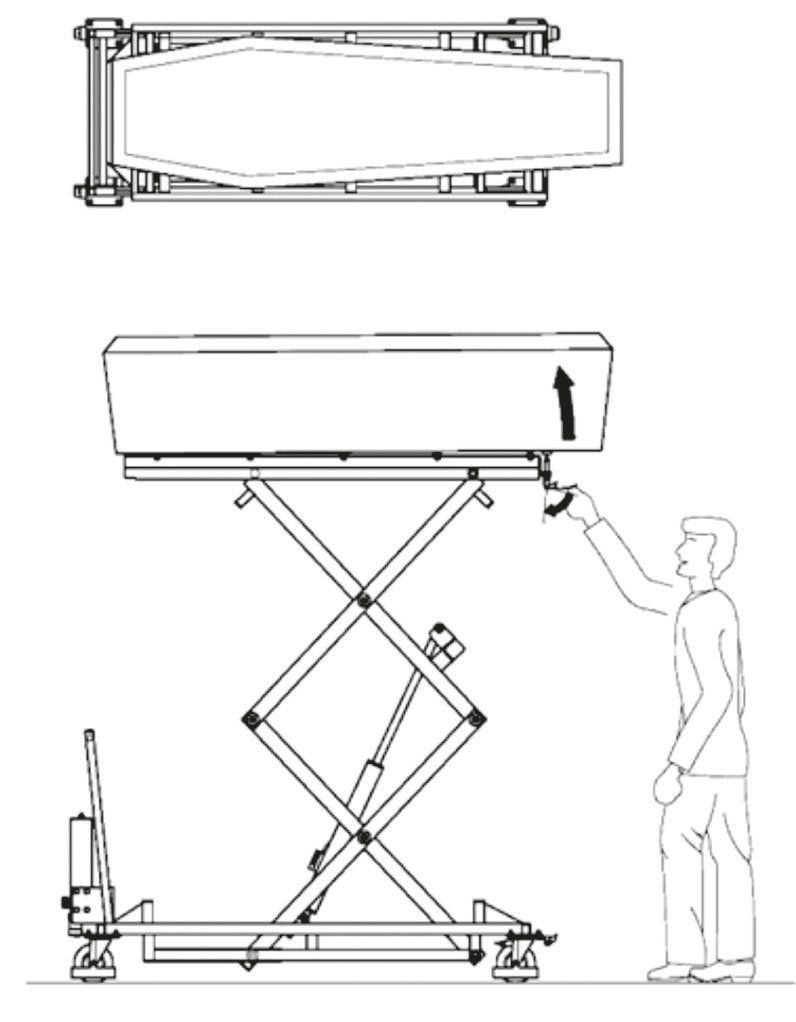

The support surface is designed to place the coffin, that will be positioned in the cell of the cold room.

It has two steering wheels and two free-running wheels.

Version equipped with a lifting system with increased potential that allows a high number of work cycles by having a battery pack with a higher power than the normal electric trolley.

The frame and the pantograph mechanics are identical, while the lifting is carried out by means of an hydraulic actuator activated by an electro /

pneumatic battery-powered control unit.

Product Specifications
